Smart On-Demand Custom Box Forming Machine

This medium-scale box forming solution offers seamless on-demand production with integrated cutting and creasing. Ideal for businesses aiming to reduce inventory, increase customization, and accelerate order fulfillment.

Medium Corrugated Box Forming Machine Solution: Smart On-Demand Custom Box Forming Machine

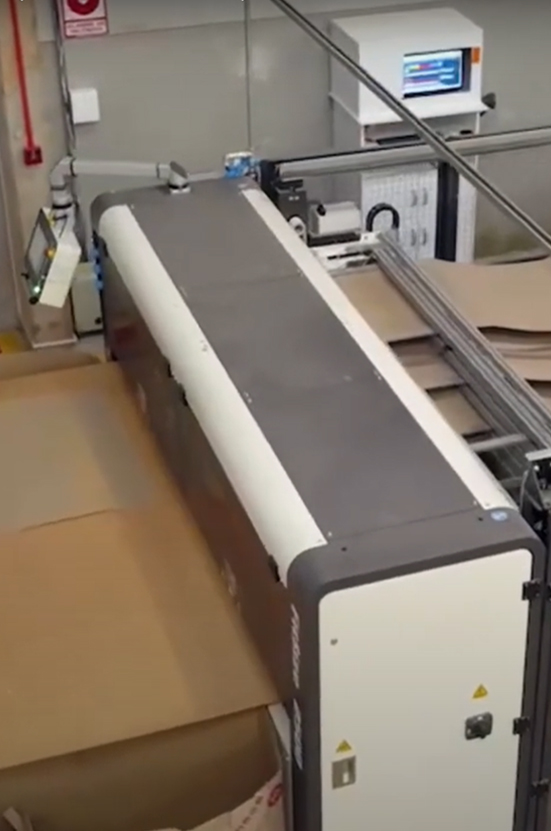

The Smart On-Demand Custom Box Forming System integrates cutting and crease lines into one system, producing custom-sized corrugated boxes on demand. This on-demand production method eliminates the need to store any inventory in the warehouse. With the user-friendly interface, selecting the required box type is simple and easy, streamlining the box manufacturing process. It eliminates the traditional steps of mold setup and adjustments, providing high-efficiency, customized box solutions for various products.

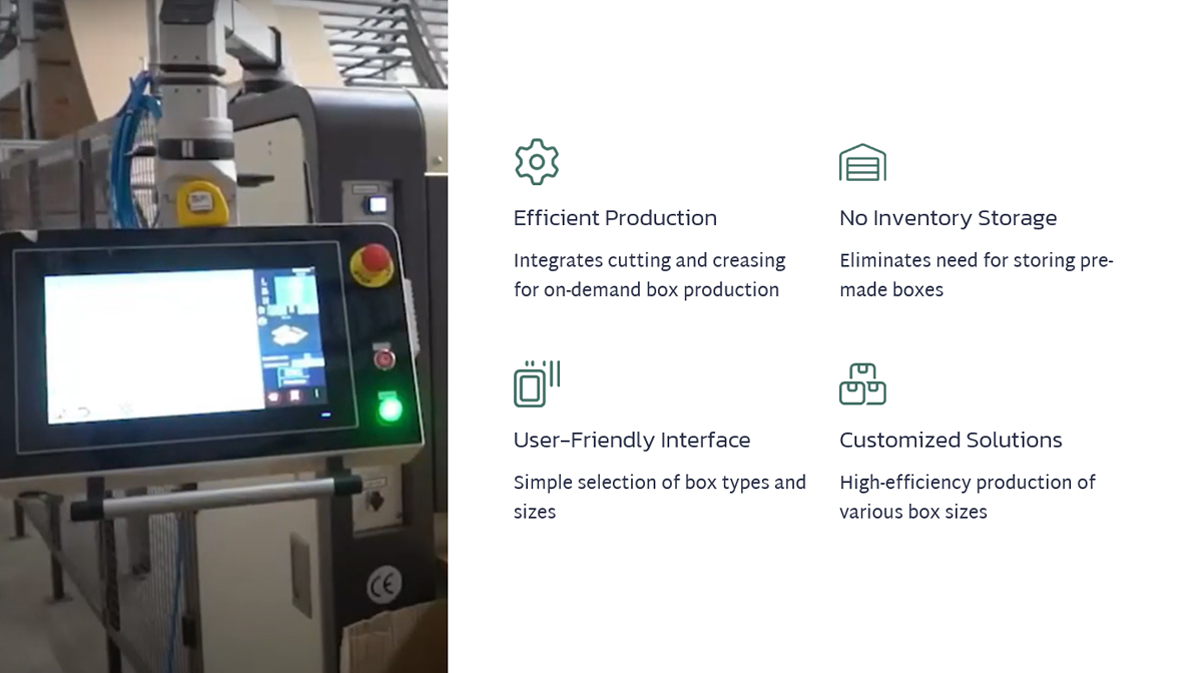

Machine Overview




Medium Corrugated Box Forming Machine Solution: Smart On-Demand Custom Box Forming Machine
Technical Specifications
Machine Name Smart On-Demand Custom Box Forming Machine
Cardboard Length

min. 400 mm
Cardboard Length (automatic sheets feeding) 400 ~ 5000 mm
Cardboard Width 250 ~ 1600 mm (The processing width will vary depending on the number of longitudinal unit)
Cardboard Thickness 2 ~ 8 mm
Cardboard Basis Weight outer liner ≥ 130 g/m2、fluting ≥ 100 g/m2
Cardboard stacking height (automatic sheets feeding) Up to 200 mm
Cutting Tolerance Longitudinal: Max. 0.2%Transversal: ± 2 mm
Production Speed 4 ~ 9 boxes/min. (depending on types and sizes)
Dimensions (L x W x H) 1450 x 3550 x 1900 mm
Electric Power approx. 5 kw
Net Weight approx. 1450 kg
Key Features

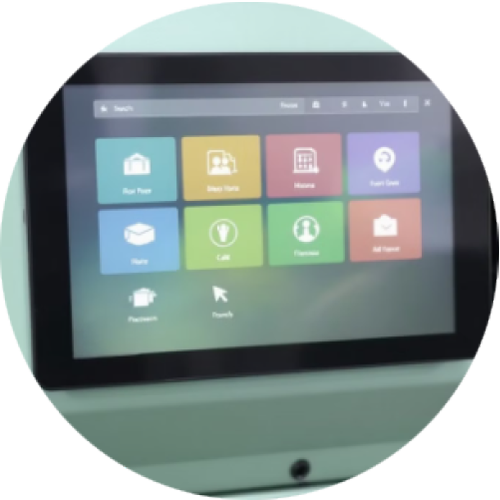

User-Friendly Interface & Smart Connectivity
15-inch human-machine interface (HMI) provides users with a clear and intuitive operating experience. Integrated HMI and industrial computer functionalities allow remote connections via RJ45 network cables or Wi-Fi without requiring additional devices.

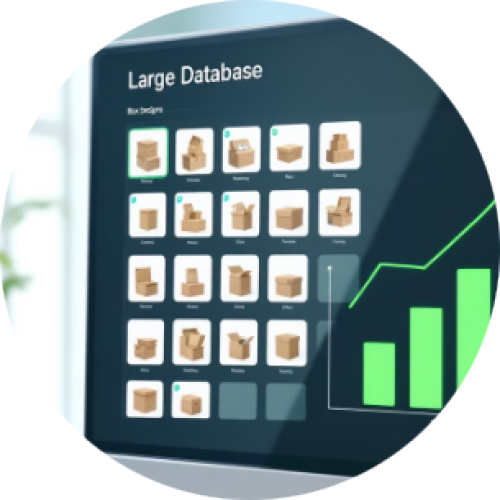

Enhanced Efficiency & Storage
Capable of storing up to 100,000 frequently used box types and dimensions, enhancing operational efficiency. Carton production records are stored by date, time, box type, and dimensions in the system. Users can search by date to reproduce boxes or export records for backup purposes.
Advanced Dimension Measurement
Supports advanced laser scanning for dimension measurement, enabling size detection as objects are transported through the conveyor system.

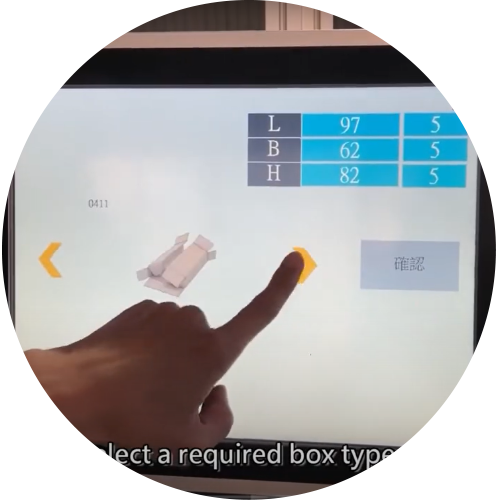

Effortless Box Production
Simply select the box type and input dimensions (length, width, height) to produce cartons effortlessly. In addition to pre-set box designs, users can customize box types directly via the interface.

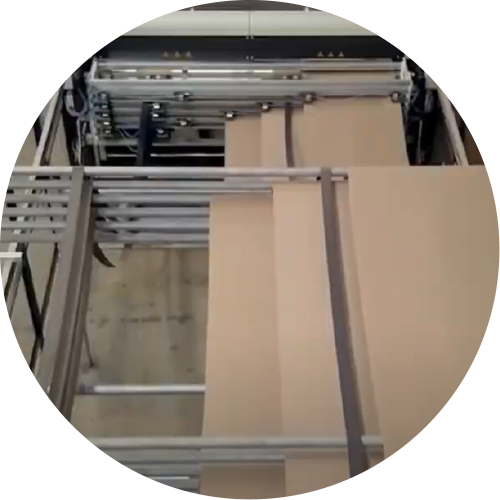

Flexible Feeding Modes
Feeding mode can be switched between manual single-sheet feeding and continuous sheet feeding. Continuous sheet feeding minimizes material waste through intelligent optimization, with the system automatically selecting the most suitable corrugated sheet for production efficiency.


Key Features
User-Friendly Interface & Smart Connectivity
Intuitive interface enabling remote access via network or Wi-Fi.
Effortless Box Production
Easily select box type and dimensions for effortless carton production.
Enhanced Efficiency & Storage
Stores up to 100,000 box types for improved efficiency and record keeping.
Flexible Feeding Modes
Switch between manual or continuous sheet feeding for optimized material use.
Advanced Dimension Measurement
Advanced laser scanning for precise dimension measurement during transport.
