Automatic Box Making Machine
Tailored for medium-sized factories and ecommerce logistics, our automatic box making machine offers the perfect balance of flexibility and cost efficiency. With on-demand production, multi-modular box template library, object size scanning and eco-friendly compatibility, this machine streamlines packaging for dynamic markets—enhancing operational agility and supporting sustainable supply chain goals.
Advantages of Medium-Scale Corrugated Box Forming Machine
Applicable Range/ Medium and small factories, e-commerce warehouses, logistics providers, and businesses requiring flexible production and efficient supply.
Balancing Efficiency and Flexibility
Instant production of customized boxes, suitable for fast-changing market demands.
Reduced Management Costs
Produce on-demand, eliminating the need to store large quantities of boxes, reducing space and management expenses.
No Need for Fillers
Precisely produces boxes that match product dimensions, reducing filler and shipping costs.
Modular Design
Flexible expansion, easy maintenance and upgrades, extending the life of the equipment.
Supports Multiple Materials
Compatible with eco-friendly materials, meeting green production standards.
Integrated Size Transfer System
Adapts to diverse product size requirements, improving overall efficiency.
Smart On-Demand Automatic Box Making Machine
This smart automatic box making solution offers on-demand production with integrated cutting and creasing. It can store up to 100,000 box types with dimension inputs, and features integrated laser scanning to measure object size and suggest optimal box types—reducing material waste and improving packaging efficiency. Ideal for businesses aiming to reduce inventory, increase customization, and accelerate order fulfillment.
Medium Corrugated Box Forming Machine Solution: Smart On-Demand Custom Box Forming Machine
The Smart On-Demand Custom Box Forming System integrates cutting and crease lines into one system, producing custom-sized corrugated boxes on demand. This on-demand production method eliminates the need to store any inventory in the warehouse. With the user-friendly interface, selecting the required box type is simple and easy, streamlining the box manufacturing process. It eliminates the traditional steps of mold setup and adjustments, providing high-efficiency, customized box solutions for various products.

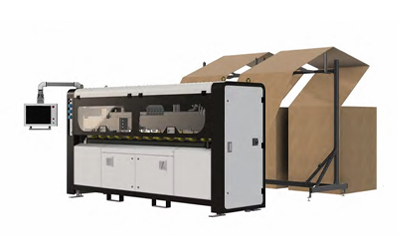

Machine Overview
Medium Corrugated Box Forming Machine Solution: Smart On-Demand Custom Box Forming Machine
Technical Specifications
| Machine Name | Smart On-Demand Custom Box Forming Machine |
| Cardboard Length |
min. 400 mm |
| Cardboard Length (automatic sheets feeding) | 400 ~ 5000 mm |
| Cardboard Width | 250 ~ 1600 mm (The processing width will vary depending on the number of longitudinal unit) |
| Cardboard Thickness | 2 ~ 8 mm |
| Cardboard Basis Weight | outer liner ≥ 130 g/m2、fluting ≥ 100 g/m2 |
| Cardboard stacking height (automatic sheets feeding) | Up to 200 mm |
| Cutting Tolerance | Longitudinal: Max. 0.2%Transversal: ± 2 mm |
| Production Speed | 4 ~ 9 boxes/min. (depending on types and sizes) |
| Dimensions (L x W x H) | 1450 x 3550 x 1900 mm |
| Electric Power | approx. 5 kw |
| Net Weight | approx. 1450 kg |
Key Features
User-Friendly Interface & Smart Connectivity
15-inch human-machine interface (HMI) provides users with a clear and intuitive operating experience. Integrated HMI and industrial computer functionalities allow remote connections via RJ45 network cables or Wi-Fi without requiring additional devices.
Enhanced Efficiency & Storage
Capable of storing up to 100,000 frequently used box types and dimensions, enhancing operational efficiency. Carton production records are stored by date, time, box type, and dimensions in the system. Users can search by date to reproduce boxes or export records for backup purposes.
Advanced Dimension Measurement
Supports advanced laser scanning for dimension measurement, enabling size detection as objects are transported through the conveyor system.
Effortless Box Production
Simply select the box type and input dimensions (length, width, height) to produce cartons effortlessly. In addition to pre-set box designs, users can customize box types directly via the interface.
Flexible Feeding Modes
Feeding mode can be switched between manual single-sheet feeding and continuous sheet feeding. Continuous sheet feeding minimizes material waste through intelligent optimization, with the system automatically selecting the most suitable corrugated sheet for production efficiency.
Key Features
User-Friendly Interface & Smart Connectivity
Intuitive interface enabling remote access via network or Wi-Fi.
Effortless Box Production
Easily select box type and dimensions for effortless carton production.
Enhanced Efficiency & Storage
Stores up to 100,000 box types for improved efficiency and record keeping.
Flexible Feeding Modes
Switch between manual or continuous sheet feeding for optimized material use.
Advanced Dimension Measurement
Advanced laser scanning for precise dimension measurement during transport.
