High-Speed Box Making Machine

Designed for large-scale packaging needs, our largescale series machines offer a comprehensive solution with high-speed production, intelligent automation, and seamless integration. As a highcapacity paper box making machine, it is ideal for manufacturers in the food, electronics, or industrial sectors to easily upgrade to a more efficient and sustainable production model.

Advantages of Large-Scale Corrugated Box Forming Machine
Applicable Range/ Large production lines, professional packaging manufacturers, such as those in the food, electronics, and industrial product sectors, with large-scale packaging needs.
High-Speed Mass Production
A single machine can meet high-volume box needs, suitable for high-load production environments.
Automated Production
Highly integrated smart management system, reducing human intervention, improving production precision and stability.
Maximized Resource Utilization
Precision design reduces material waste, supporting ESG (Environmental, Social, and Governance) development goals.
Production Line Integration
Seamlessly connects with existing systems to deliver an intelligent overall solution.
Customization Capability
Meets the special needs of specific industries, such as custom-shaped boxes, high-strength structures, etc.

Automatic Flatbed Die-Cutting Box Making Machine

Engineered for high-volume packaging needs, this large-scale automatic diecutting system ensures fast, continuous operation with minimal downtime. As a high-speed advanced paper box making machine solution, it is perfect for manufacturers seeking precision, automation, and productivity at scale.



Large Corrugated Box Forming Machine Solution : Automatic Flatbed Die-Cutting Machine

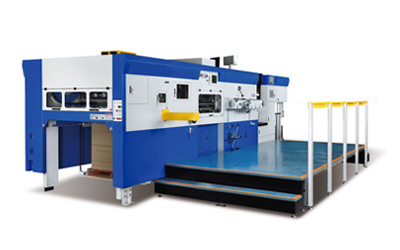

The Automatic Flatbed Die-Cutting Machine with Suction Feeder combines high performance and stability, breaking through traditional manufacturing processes to achieve precise feeding and rapid production. Its top-suction feeder system handles various types of paper, and the intelligent control panel simplifies the operating process. The fully automatic die-cutting, stripping, and stacking systems enable continuous operation without downtime, enhancing production efficiency. With a focus on energy efficiency, precision, and convenience, this machine meets the modern packaging industry's demand for high efficiency and customization, making it the ideal choice for boosting productivity.
Machine Overview




Large Corrugated Box Forming Machine Solution : Automatic Flatbed Die-Cutting Machine
Technical Specifications
Machine Name Automatic Flatbed Die-Cutting Machine with Suction Feeder
Maximum sheet size 1450x 1000 mm
Maximum cutting size 1430x980mm
Minimum sheet size 540x 360mm
Maximum Box pressure 350 tons
Maximum Box speed 5000 sheet / hour
Main Motor Power 20HP
Total Horsepower 37HP
Machine weight 30 tons
Dimensions 10115 (L) x 5089 (W) x 2485 (H) mm
Thickness of paperboard 0.5~8 mm (G-A+B)
Key Features
High-Efficiency Die-Cutting Mechanism
Safety-enhanced card-clamp die cutting frame allows effortless installation and removal, with a rotating frame for quick die cutter replacement. Precision-ground bottom plate ensures flawless flatness and cutting accuracy. Detachable bottom plate retains die-cut paper, reducing preparation time and boosting productivity.
Advanced Paper Positioning Mechanism
Specialized output rollers handle uneven corrugated papers effortlessly. Push-type side guides, tailored for corrugated and thick papers, provide precise and user-friendly adjustments.
Optimized Paper Collecting Mechanism
Non-stop paper collection system with simple controls for quick adjustments. Automated sheet counting and optional paper strip insertion improve packaging efficiency. Optional rear rail system reduces labor demands and enhances workflow.
Enhanced Paper Output Mechanism
Dual paper racks alternate seamlessly for uninterrupted operation, maximizing production efficiency. Precision mechanical drive system guarantees consistent and accurate paper feeding. Adjustable pre-feed guide ensures stable paper entry.
Streamlined Debris Removal Mechanism
Frameless debris removal plate, powered by the main machine, ensures precise alignment and easy operation. Independently adjustable upper mold mechanism offers flexible lifting and lowering.
Smart Microcomputer LCD Control Panel
Centralized control interface simplifies operations and saves time. Real-time status reporting during machine stops ensures seamless troubleshooting. Records multiple die-cutting data sets for efficient tracking and repeatability.


Key Features
High-Efficiency Die-Cutting Mechanism
Safety-enhanced card-clamp die cutting frame
Precision-ground bottom plate
Detachable bottom plate
Enhanced Paper Output Mechanism
Dual paper racks for uninterrupted operation
Precision mechanical drive system
Adjustable pre-feed guide
Advanced Paper Positioning Mechanism
Specialized output rollers
Push-type side guides
Streamlined Debris Removal Mechanism
Frameless debris removal plate
Independently adjustable upper mold mechanism
Optimized Paper Collecting Mechanism
Non-stop paper collection system
Automated sheet counting
Optional rear rail system
Smart Microcomputer LCD Control Panel
Centralized control interface
Real-time status reporting
Records multiple die-cutting data sets
